• Output Voltage: 12V
  • Approx. Wattage: 350W
  • No load power consumption <0.5W for 150W; <0.75W for 200W/350W
  • AC input selectable by switch
  • Withstand 300VAC surge input for 5 seconds
  • Ultra compact and 1U low profile
  • Withstand 5G vibration test
  • High operating temperature up to 70oC
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
  • Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
  • Operating altitude up to 5000 meters
  • LED indicator for power on
  • High efficiency, long life and high reliability
  • Low cost
  • 24 months warranty
  • AC input voltage range:115 / 230VAC by switch
  • AC inrush current (max.):Cold start, 60A at 230VAC
  • DC adjustment range:±10% by potentiometer
  • Overload protection Range:110%~140%
  • Overload protection Type:Hiccup mode, auto-recovery
  • Over voltage protection Range:115%~145% rated output voltage
  • Over voltage protection Type:Shut down o/p voltage, re-power on to recover
  • Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
  • Working temperature:-25~+70°C (refer to output derating curve)
  • Safety standards:UL60950-1 approved
  • EMC standards:Design refer to EN55022 class A
  • Connection:9P/9.5mm pitch terminal block
  • Dimension (LxWxH):215x 115x 30

Write a review

Note: HTML is not translated!
    Bad           Good

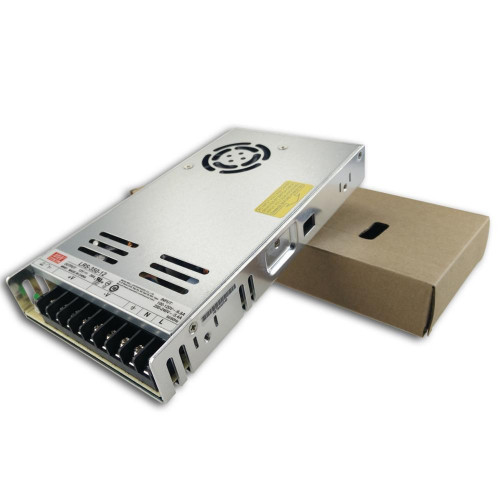

Meanwell LSR 350 - 12 SMPS (24 months Warranty)

  • Product Code: Meanwell LSR 350 - 12 SMPS
  • Availability: In Stock
  • ₹5,310.00
  • ₹2,832.00

    46.67% OFF
