Take the guesswork out of your HF station setup with the Nissei RX-103 Cross-Needle SWR/Power Meter. Designed for serious amateur radio operators, this high-precision instrument allows you to monitor your station's health in real-time.

Whether you are tuning a dipole for the 40m band or pushing high power on a linear amplifier, the RX-103 provides the accuracy and reliability you need.

Key Features:

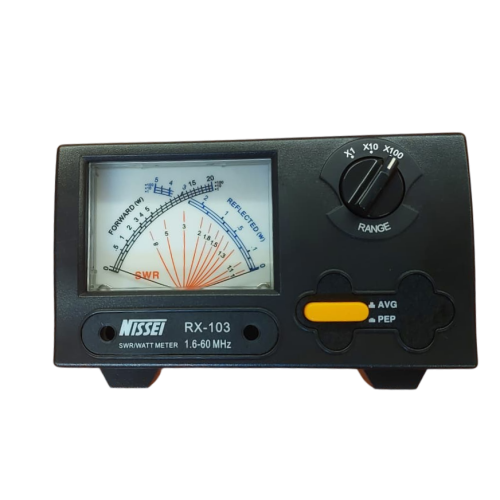

·        Simultaneous Monitoring: The large, illuminated cross-needle display allows you to read Forward Power, Reflected Power, and SWR all at once—no tedious calibration or "setting" required.

·        Wide Frequency Coverage: Operates flawlessly from 1.6 MHz to 60 MHz, covering all HF amateur bands plus the 6-meter (VHF) band.

·        High Power Capacity: With three selectable power ranges (20W / 200W / 2KW), this meter is perfect for everything from QRP rigs to high-power base stations.

·        PEP Measurements: Easily switch between Average Power and PEP (Peak Envelope Power) for accurate readings during SSB or AM transmissions.

·        Rugged Build: Housed in a durable metal cabinet with low insertion loss, ensuring it stays in your line without affecting your signal.

Technical Specification:

·        Frequency Range: 1.6 – 60 MHz (Covers all HF Bands + 6 Meters).

·        High Power Handling: Three switchable scales (20W / 200W / 2KW).

·        Cross-Needle Design: Read Forward Power, Reflected Power, and SWR simultaneously without any calibration.

·        SSB/AM Support: Switchable between Average power and PEP (Peak Envelope Power).

·        Low Insertion Loss: Can be kept permanently in-line without signal drop.

·        Illuminated Display: Includes 13.8V DC cable for backlighting.
