New technology is changing the way receivers are being designed and the IC-7300 is an industry first as an RF, Direct Sampling System is being used in an entry level HF radio. The ability to digitize RF before various receiver stages reduces the inherent noise that is generated in the different IF stages of a radio. We feel the performance of the ‘7300 will far exceed your expectations for a radio considered entry level.
Output Power 100W (25W AM)
Rx Frequencies 0.030-74.800
Receiver Type Direct Sampling
RF Direct Sampling System
The IC-7300 employs an RF direct sampling system, where RF signals are directly converted to digital data. Then processed in the FPGA (Field-Programmable Gate Array), making it possible to simplify the circuit construction as well as reduce noise that can mask weak signals.The new "IP+" improves the 3rd order intercept point (IP3) performance improving the ability to copy a weak signal that is adjacent to either a strong interfering signal. In this process, A/D converter is optimized to reduce or eliminate signal distortion.
15 Discrete Band-Pass FiltersThe RF Direct Sampling is protected by an array of bandpass filters. The signal passes through one of the fifteen bandpass filters, where signals outside the passband are rejected. To reduce the insertion loss, the IC-7300 utilizes High Q factor coils.

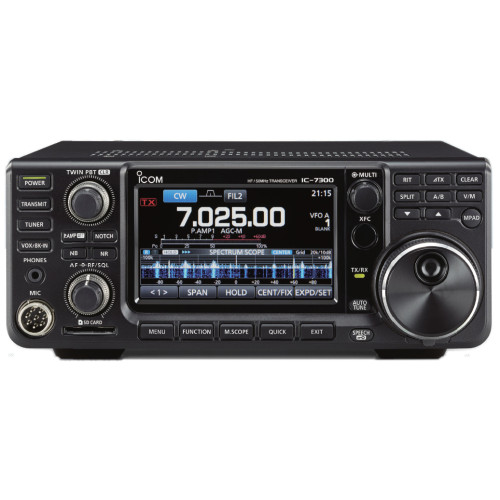

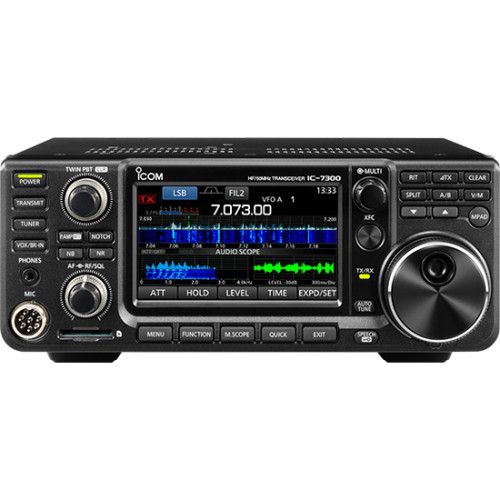

Large Color Touch Screen
The large 4.3" color TFT touch LCD offers intuitive operation of functions, settings, and various operational visual aids such as the band scope, waterfall function, and audio scope.
- Built-in automatic antenna tuner
- 101 channels (99 regular, 2 scan edges)
- SD memory card slot for saving data
- Cooling fan system
- Multi-function meter
- CW functions: full break-in, CW reverse, CW auto tuning
- SSB, CW, RTTY, AM, FM modes
ICOM IC-7300 - EUR Version
- Brand: ICOM
- Product Code: ICOM IC-7300
- Reward Points: 1620
- Availability: In Stock
- Price in reward points: 95580
